ADU Engined RS2
Wiring
These schematics are for the
ADU engined RS2 Avant (1994 - 95). These sheets supplement the
schematic info for the base Audi 80/90 Avant but are eminently useful in
checking ABY engined S2 wiring for the Motronic ECU. |
Note - Sheets 1 thru 8 are dated 03.94 and sheets 9 thru 17
are dated 08.94.
| Raw
Schematic Sheet in English |
With
Annotation |
| Sheet

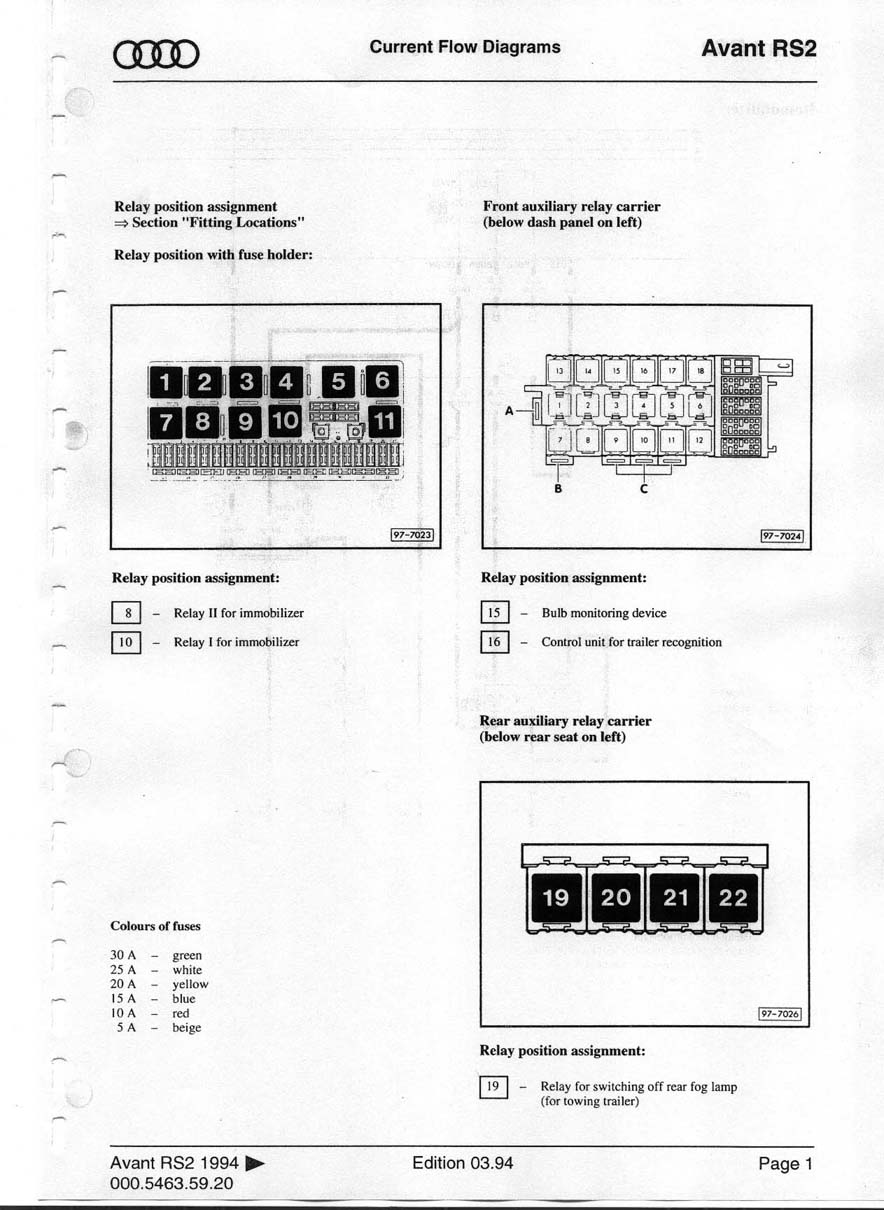

1 - Relay positions |
Not yet available |
| Sheet
2 - Miscellaneous |
Not yet available |
| Sheet

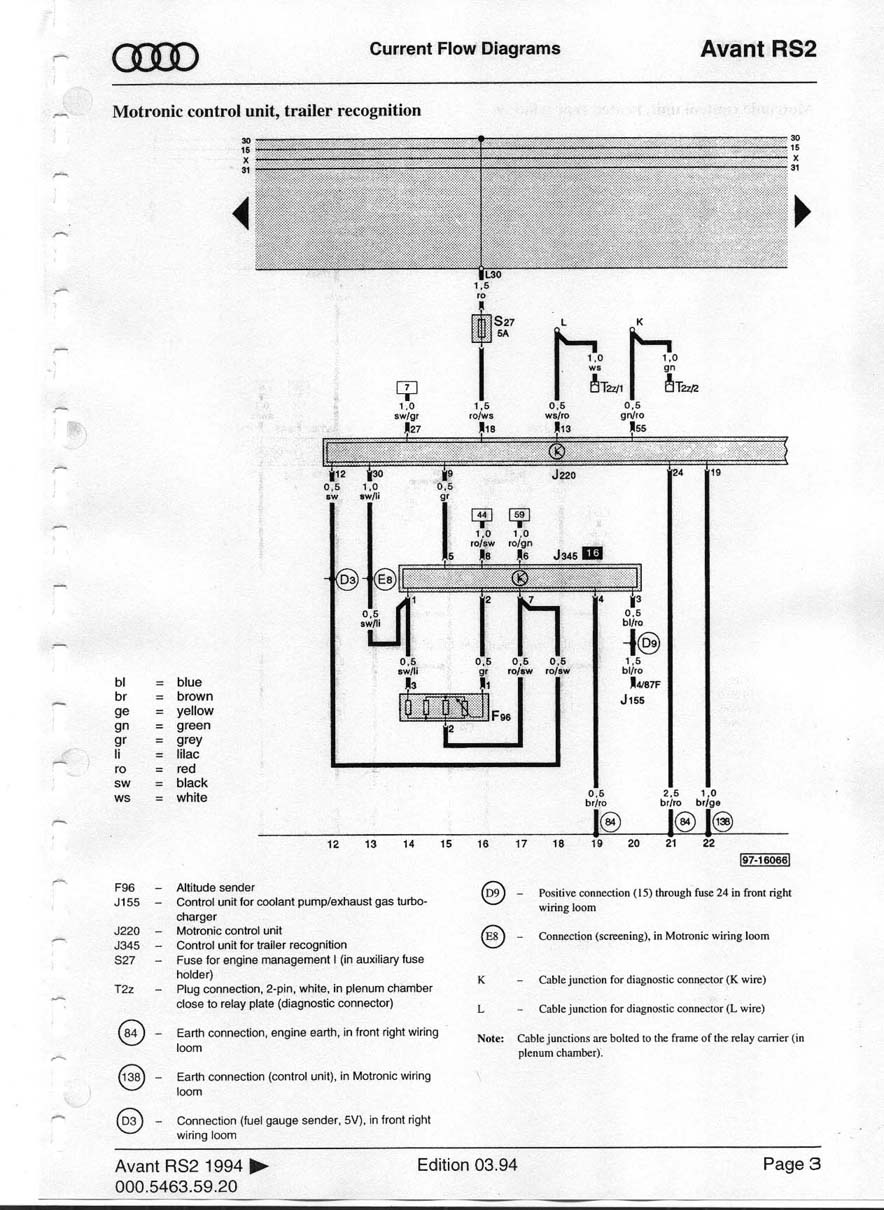

3 - Diagnostic & Trailer Recognition |
Not yet available |

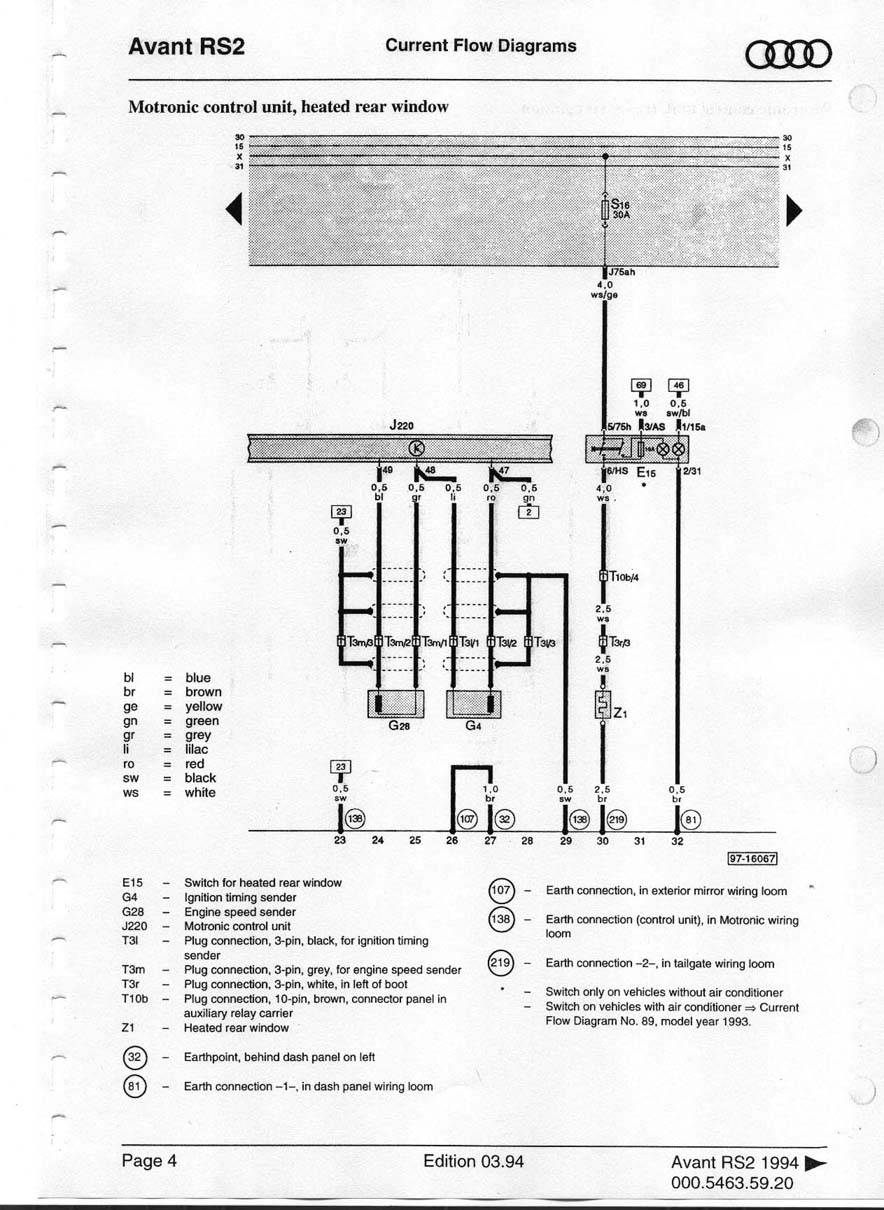

| Sheet
4 - Motronic & Heated Rear Window |
Not yet available |

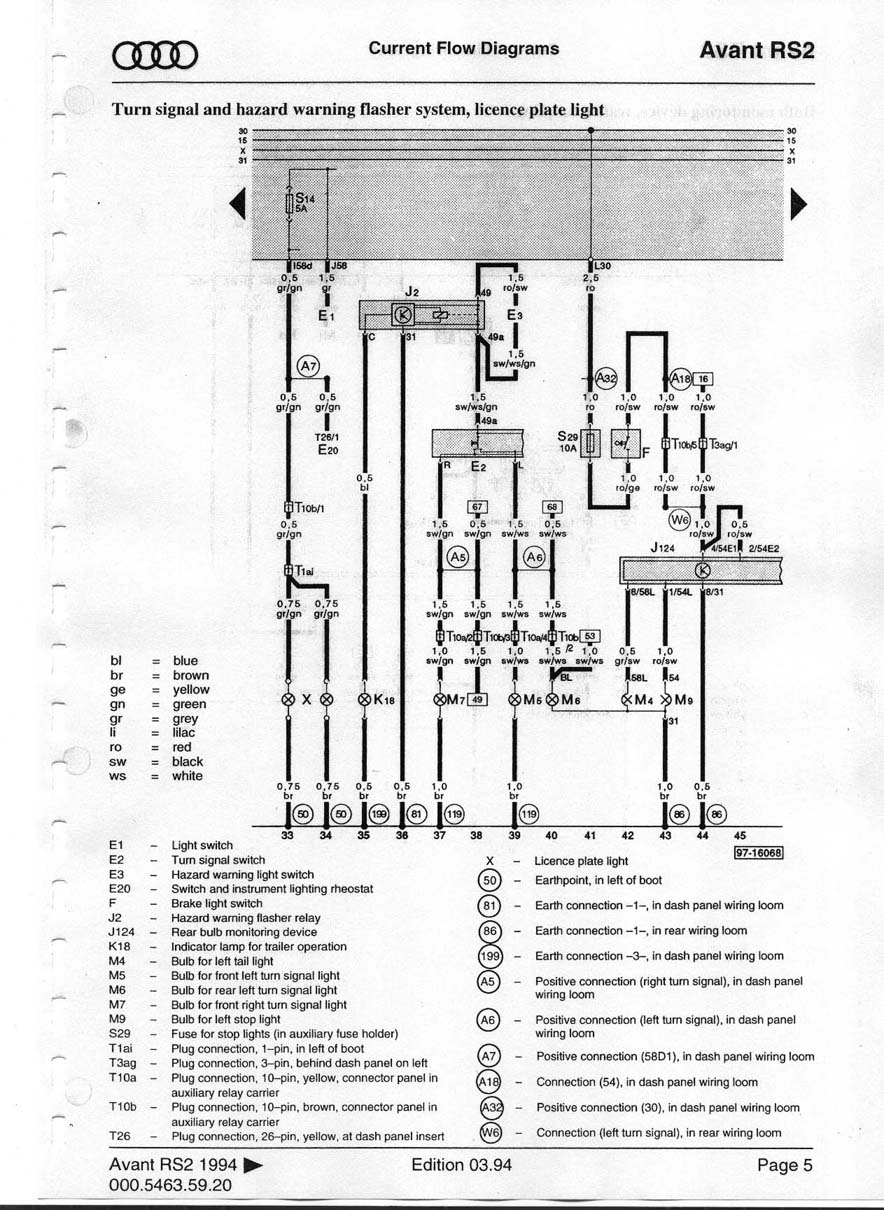

| Sheet
5 - Turn Signals, Hazard etc |
Not yet available |
| Sheet

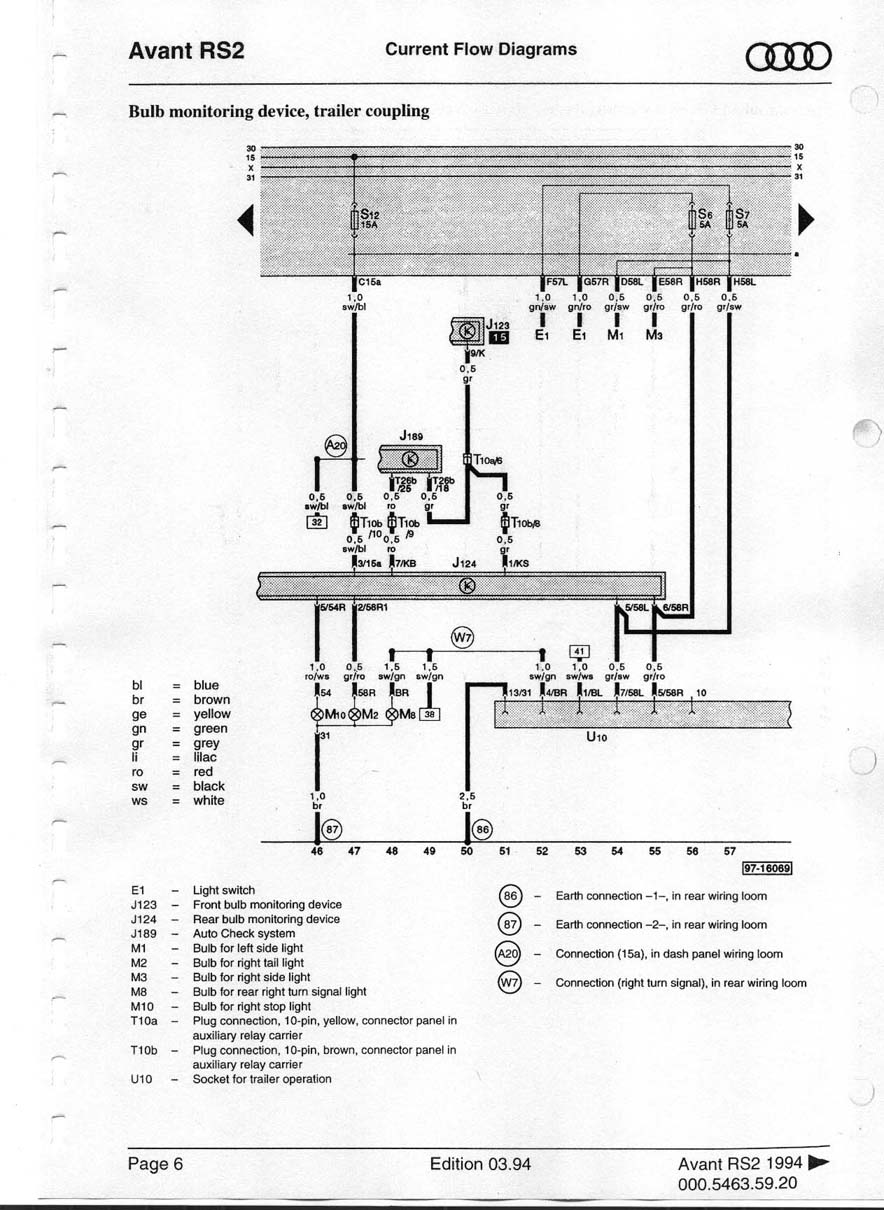

6 - Rear bulb monitoring |
Not yet available |

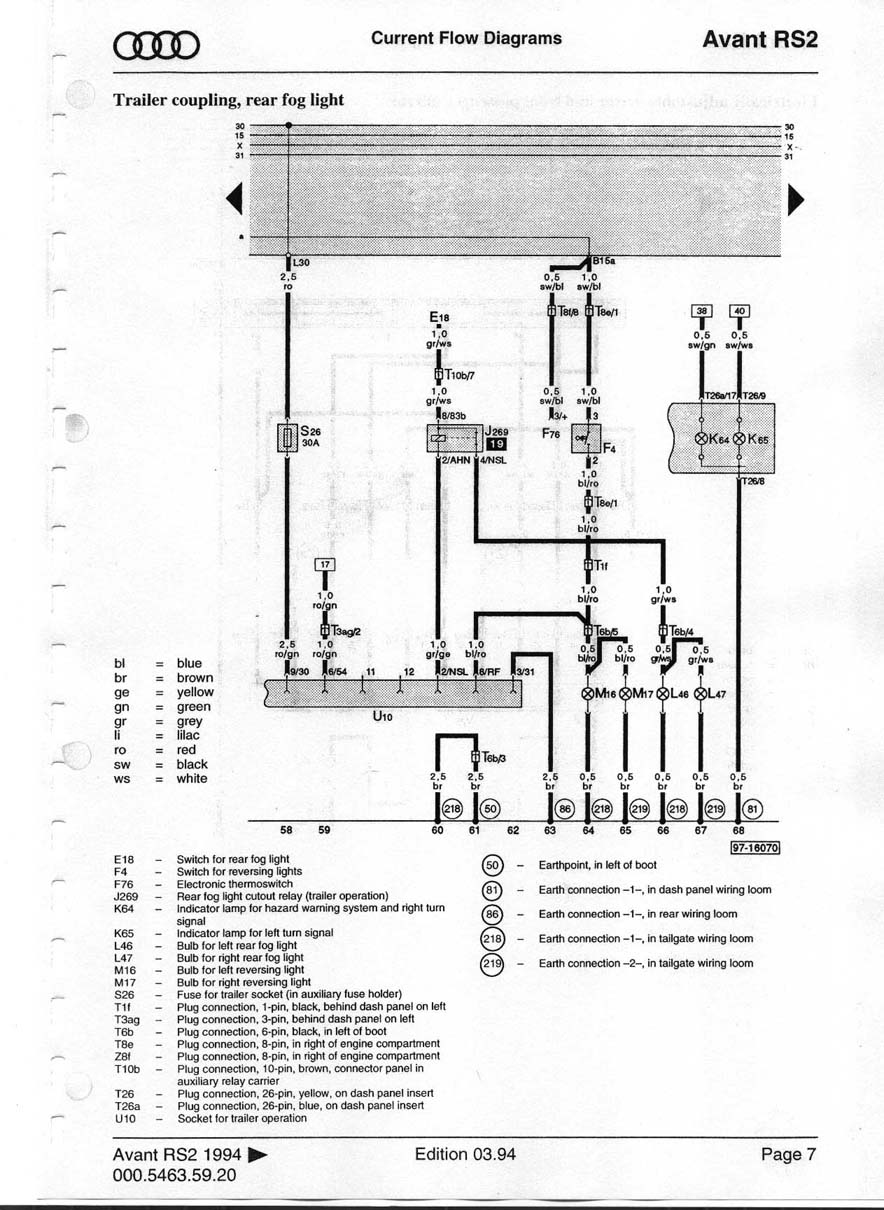

| Sheet
7 - Trailer coupling, rear fog lights |
Not yet available |
| Sheet

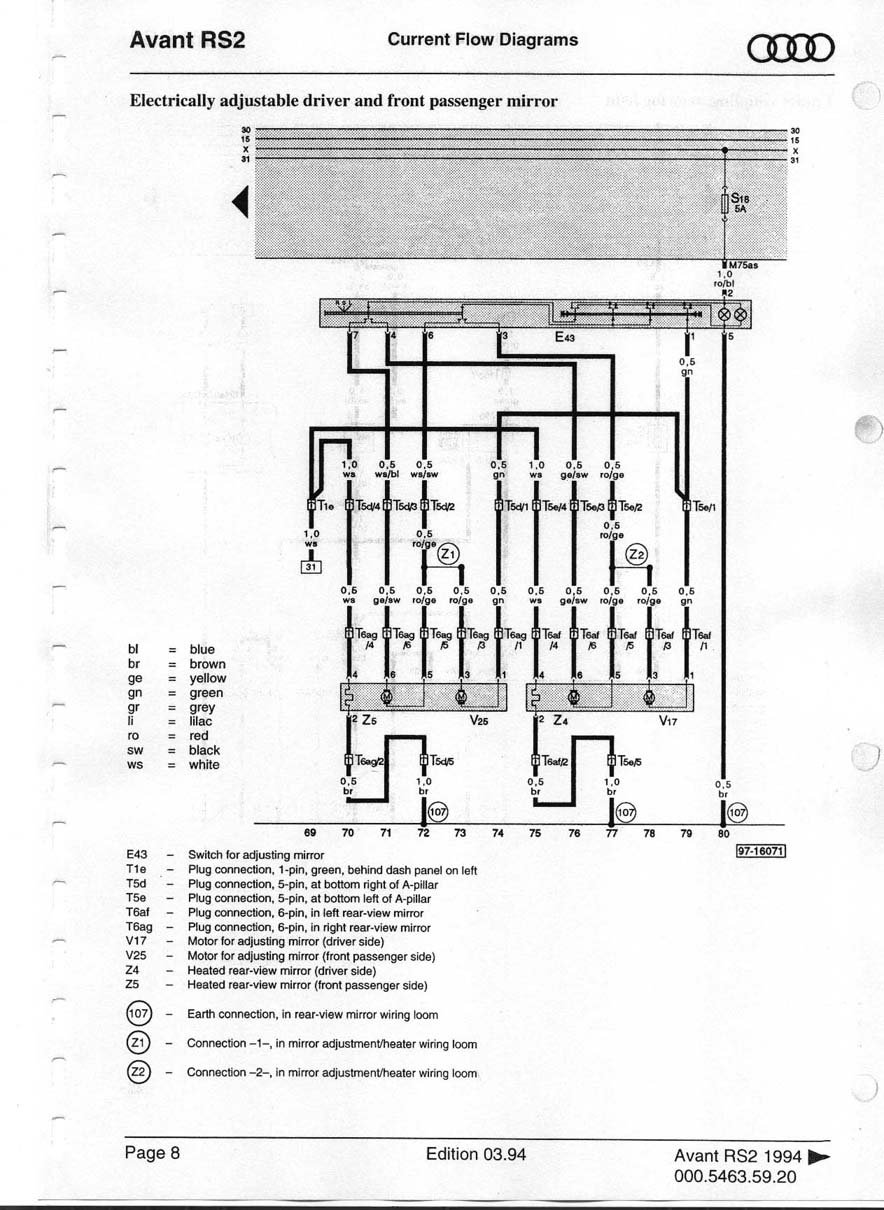

8 - Electrically heated mirrors |
Sense of 'drivers'
& 'passenger' side is misleading for RHD cars. V17 is left side. V25
is right side. |
| Sheet

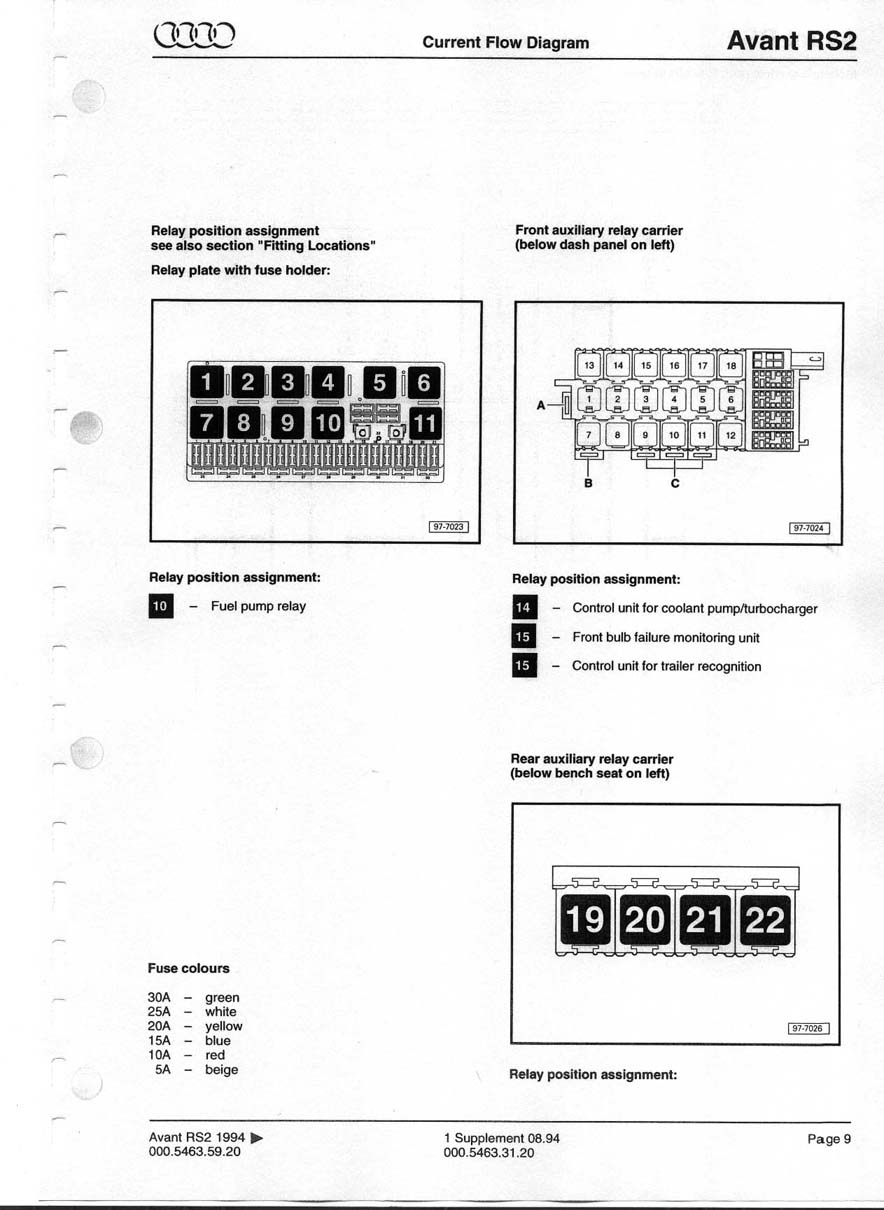

9 - More relay positions |
Not yet available |

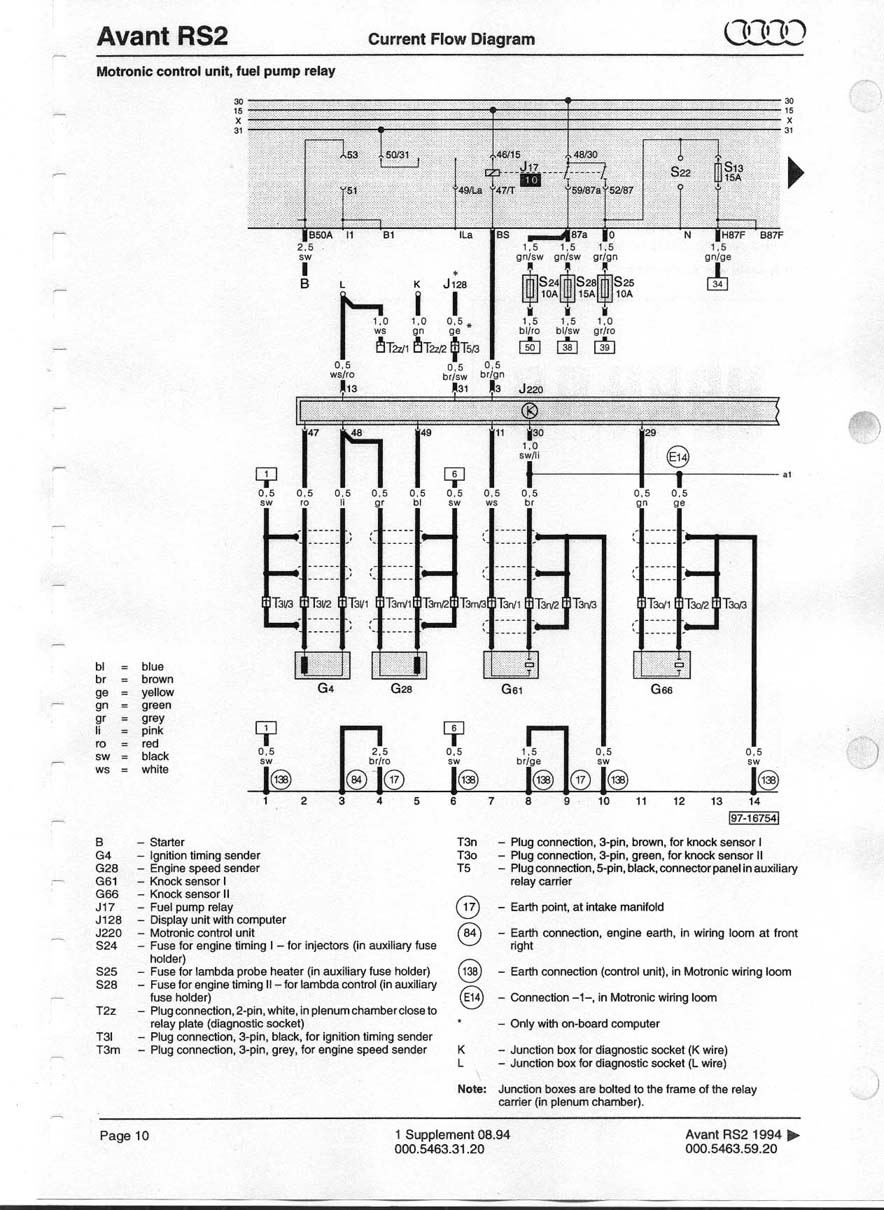

| Sheet
10 - Motronic, fuel pump relay |
Not yet available |

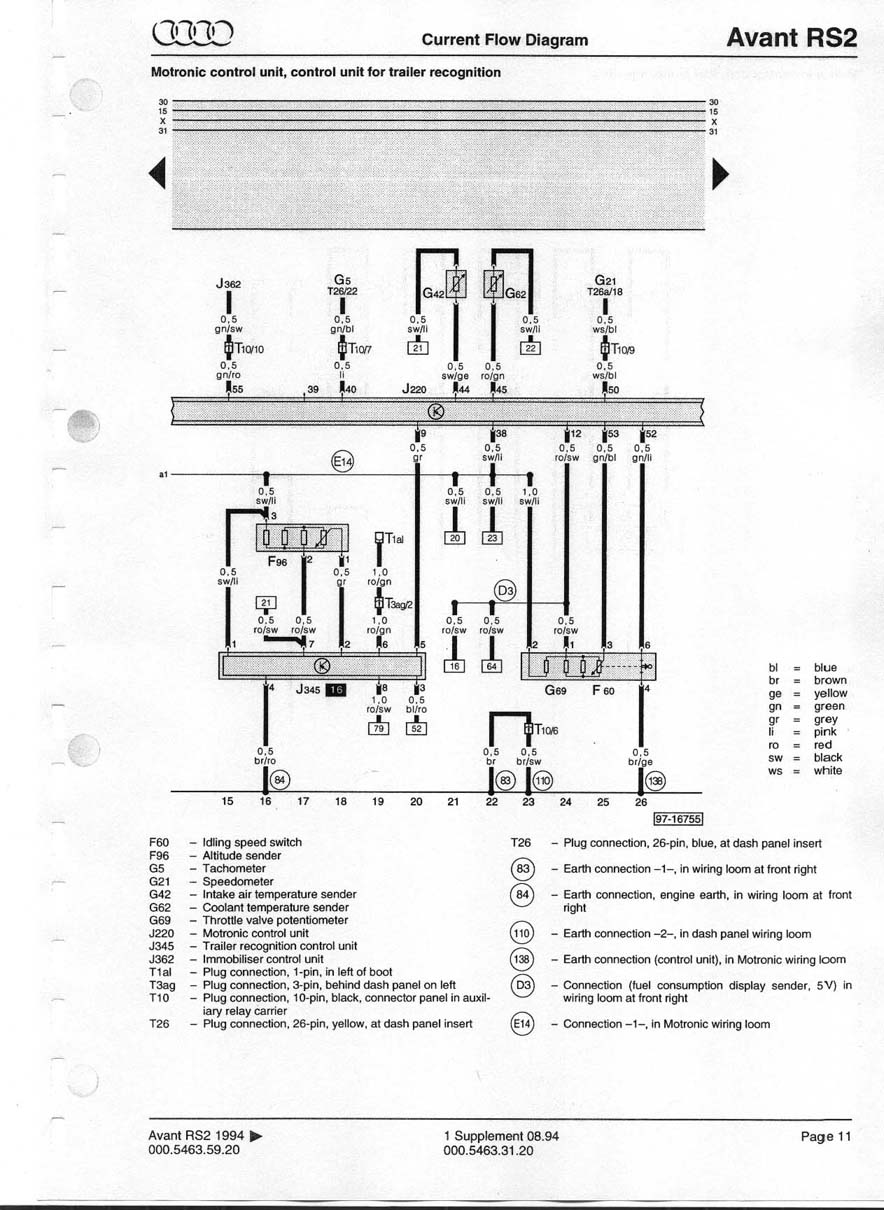

| Sheet
11 - Motronic, trailer recognition |
Not yet available |
| Sheet

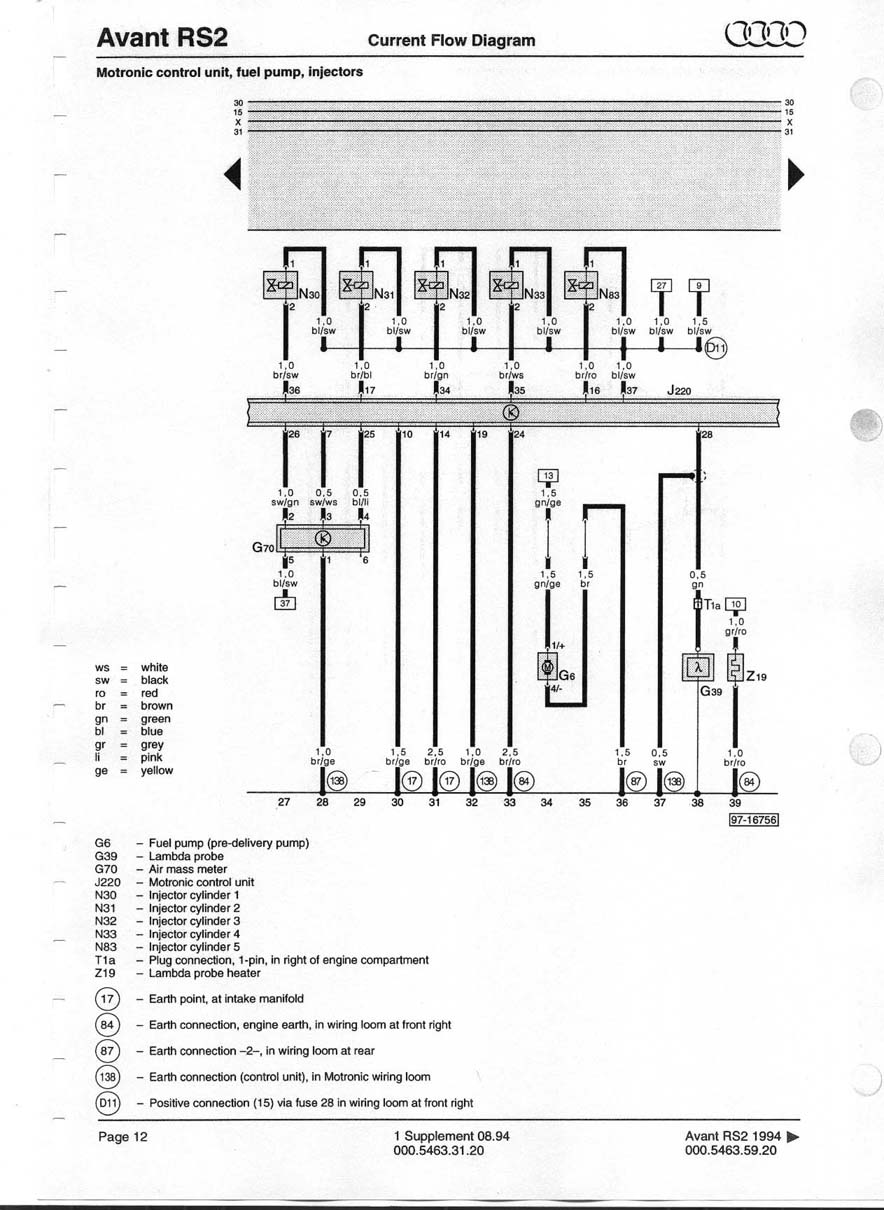

12 - Motronic, fuel injectors, MAF + |
Not yet available |
| Sheet
13 - Motronic, ignition, WGFV, ISV + |
Not yet available |

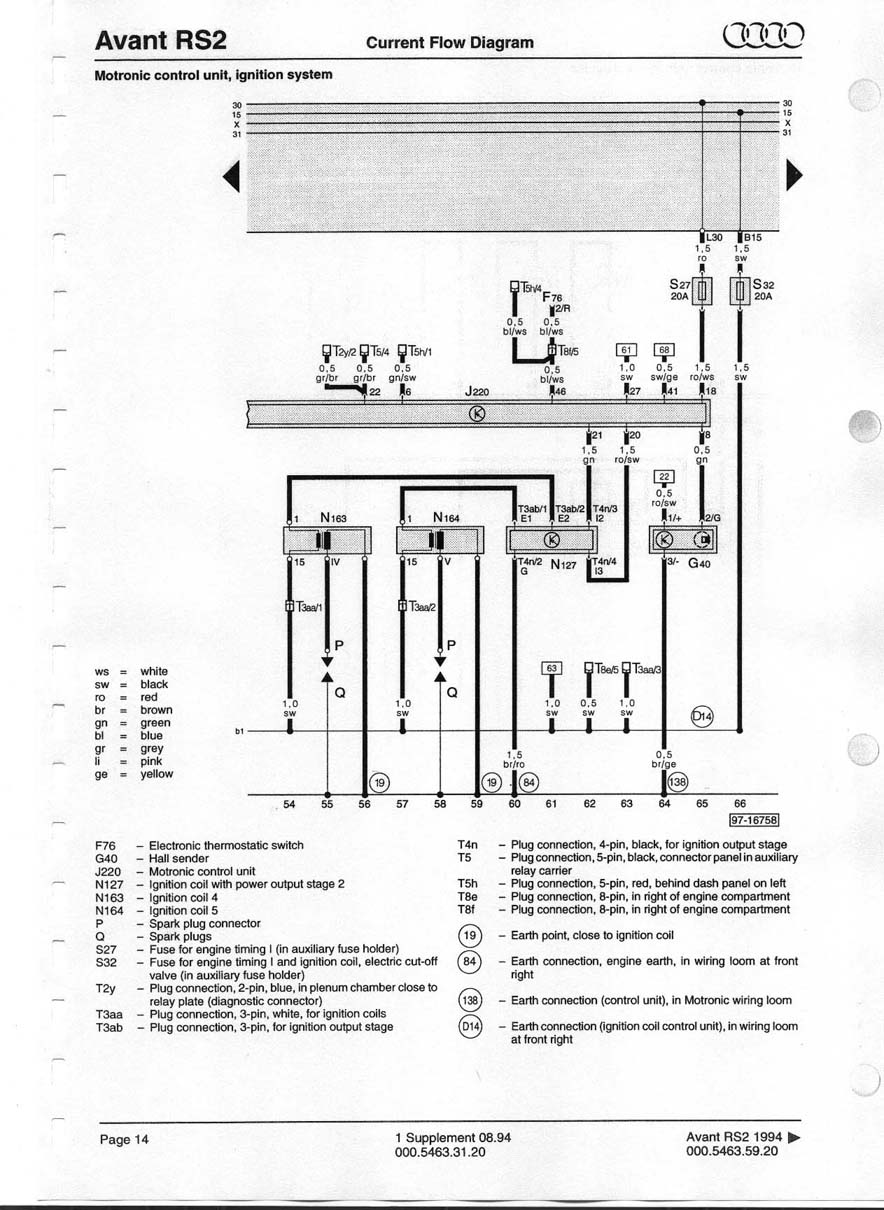

| Sheet
14 - Motronic, ignition |
Not yet available |

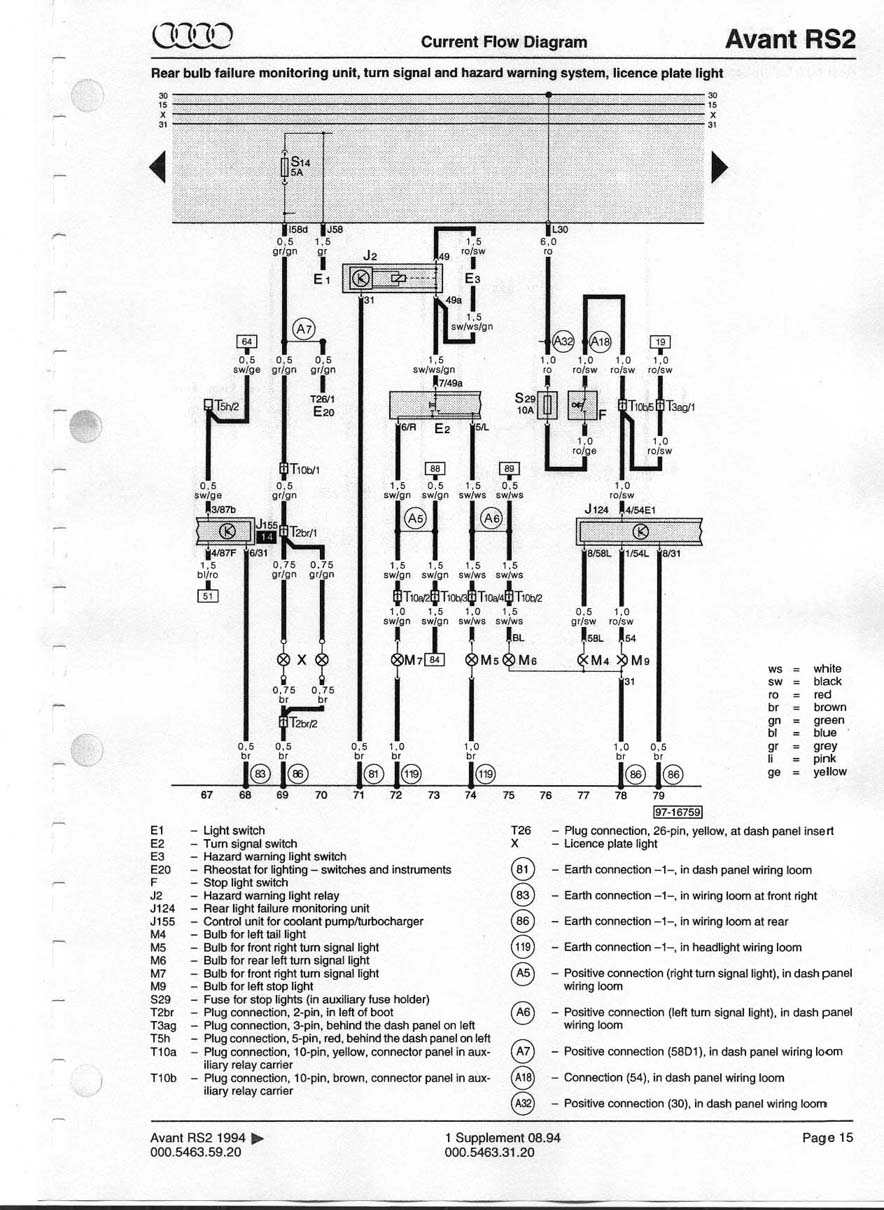

| Sheet
15 - Lighting & Monitoring |
Not yet available |
| Sheet

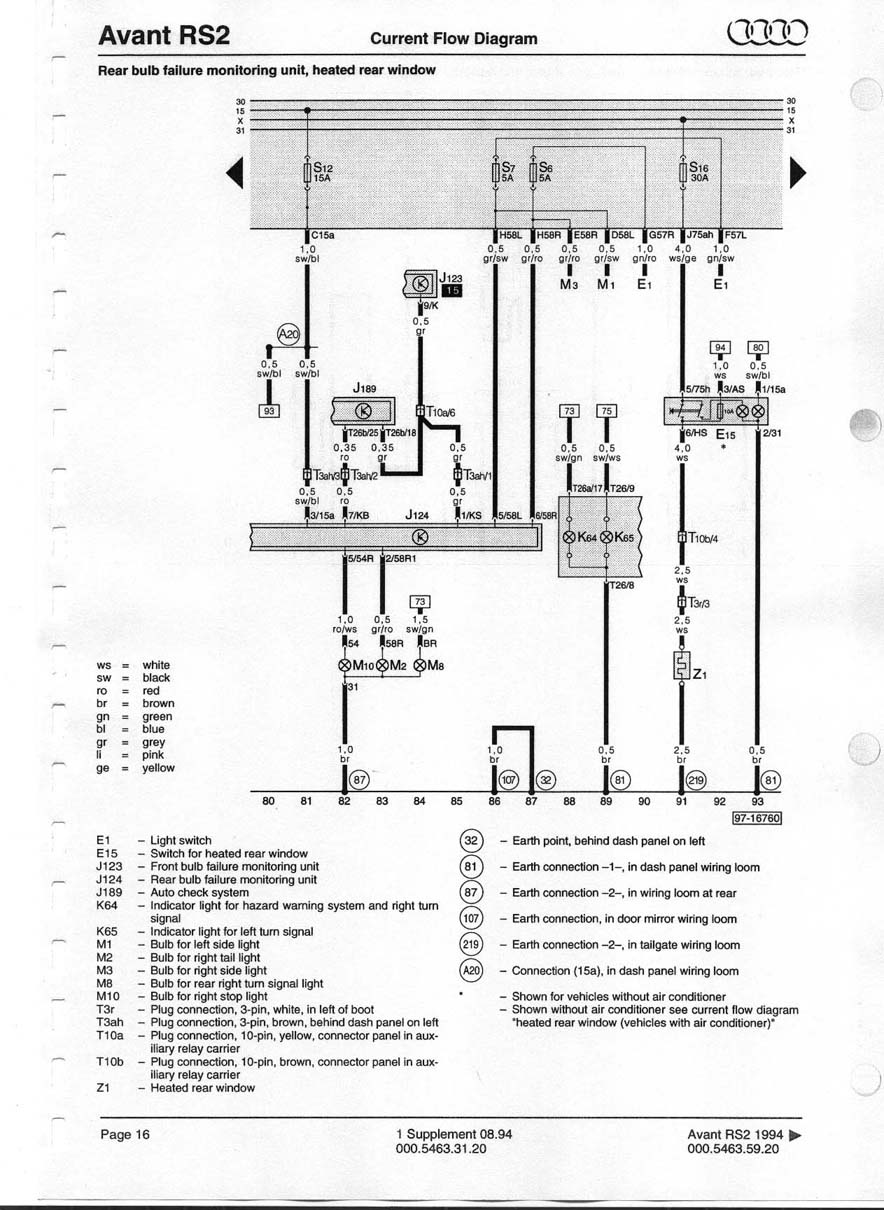

16 - Lighting & Monitoring |
Not yet available |

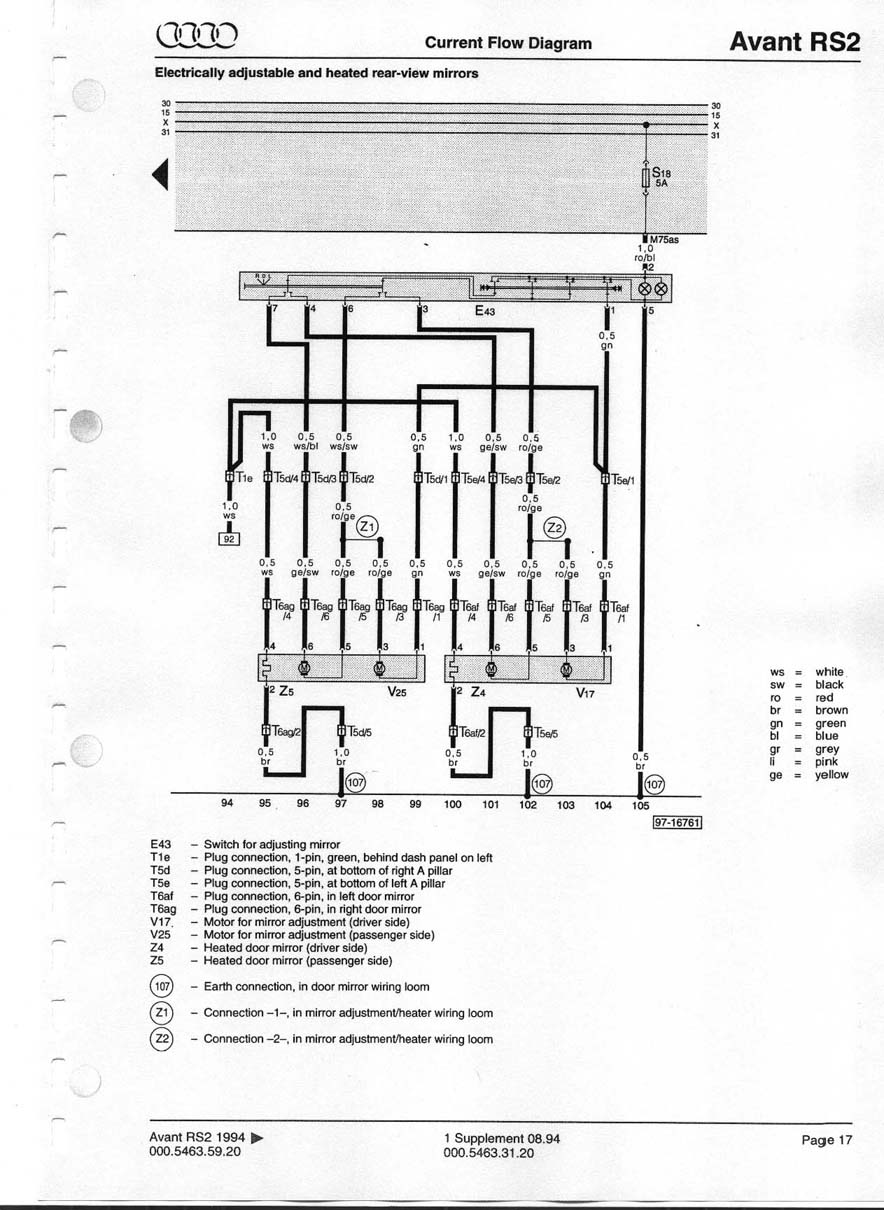

| Sheet
17 - Electric Mirrors (Again) |
Same comment as sheet
8 |
Items missing from the above schematic set are for a great deal of non-S2 specific
equipment such as ABS, Electric Windows, Wiper Motors, Central Locking, Dim-Dip
lighting (UK) etc etc... But schematics for those items can mostly be found in
Haynes & Bentley manuals in the meantime.
|
